軟管泵工作原理：
一根內壁光滑，強度可靠的特制橡膠軟管安裝在泵體內部，通過一對壓輥沿著軟管旋轉擠壓，這樣的 旋轉使得介質往一個方向輸送而不會倒流，軟管在輸送介質之后，由被壓扁軟管的自身彈性和側導輪的強制下，軟管恢復原狀，此時，軟管內產生高真空將介質再次吸入管腔，然后介質在隨之而來的壓輥擠壓下從軟管內排出，如此周而復始，介質不斷的被吸入和排出。目前產品使用溫度為≤100℃。根據用戶需要可以開發使用溫度在120℃的軟管泵軟管產品。
Working principle of hose pump:
A special rubber hose with a smooth inner wall and reliable strength is installed inside the pump body. It is rotated and squeezed along the hose by a pair of pressure rollers. This rotation allows the medium to be transported in one direction without flowing back. After that, due to the elasticity of the flattened hose and the force of the side guide wheels, the hose returns to its original state. At this time, a high vacuum is generated in the hose to suck the medium into the lumen again, and then the medium is pressed by the subsequent pressure roller. It is discharged from the hose under the squeeze, and so on and on, the medium is continuously sucked in and discharged. The current product temperature is ≤100 ℃. According to user needs, we can develop hose pump hose products with a temperature of 120 ℃.

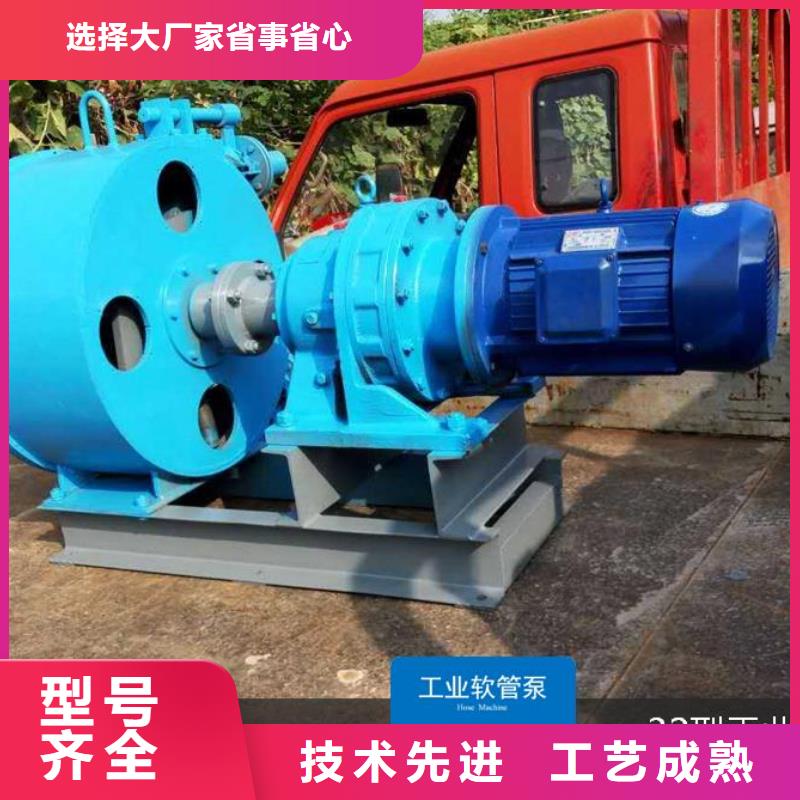

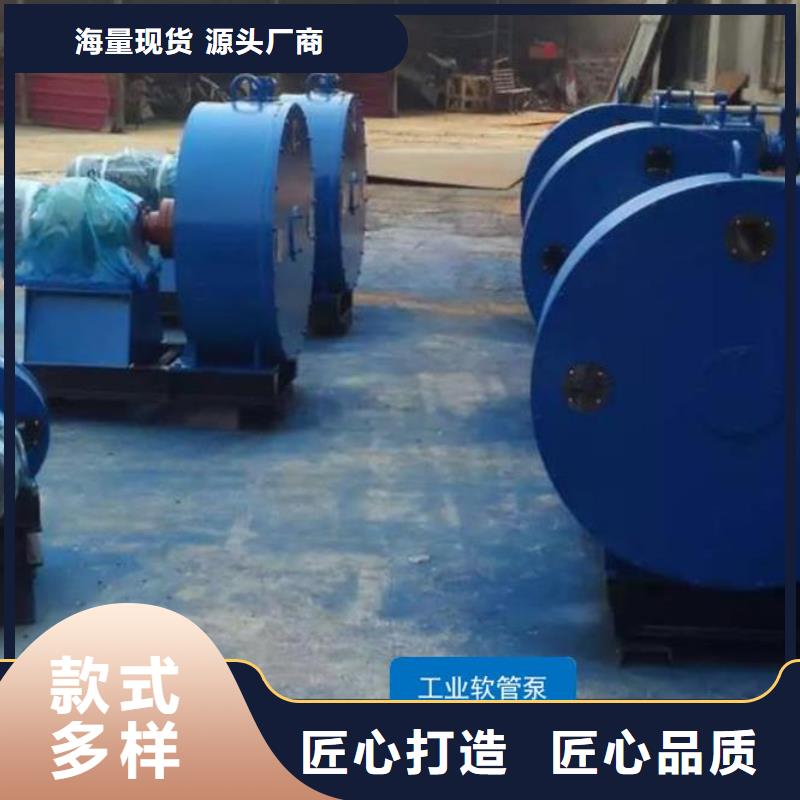

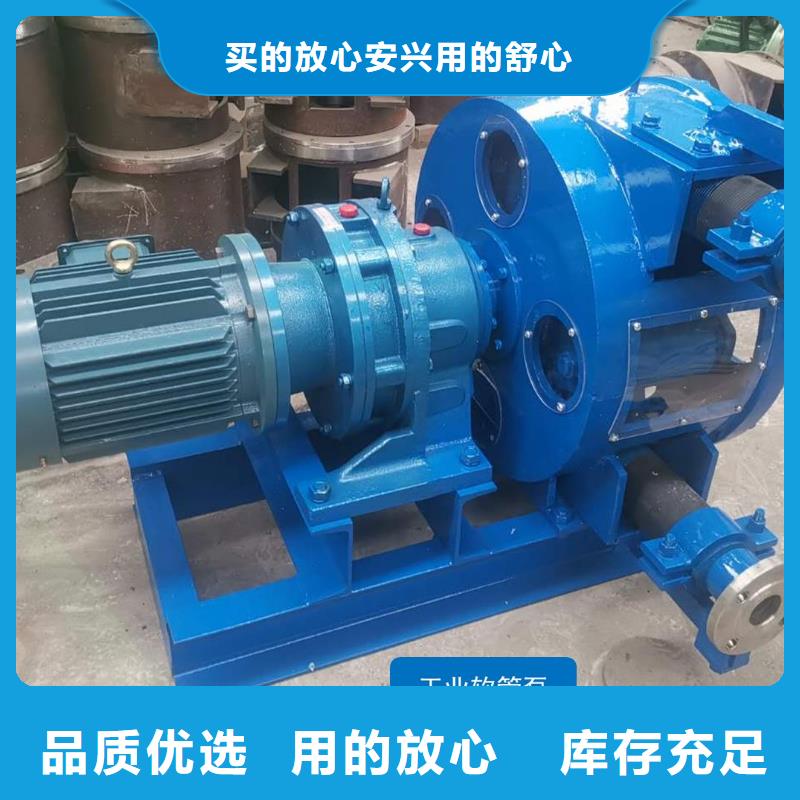

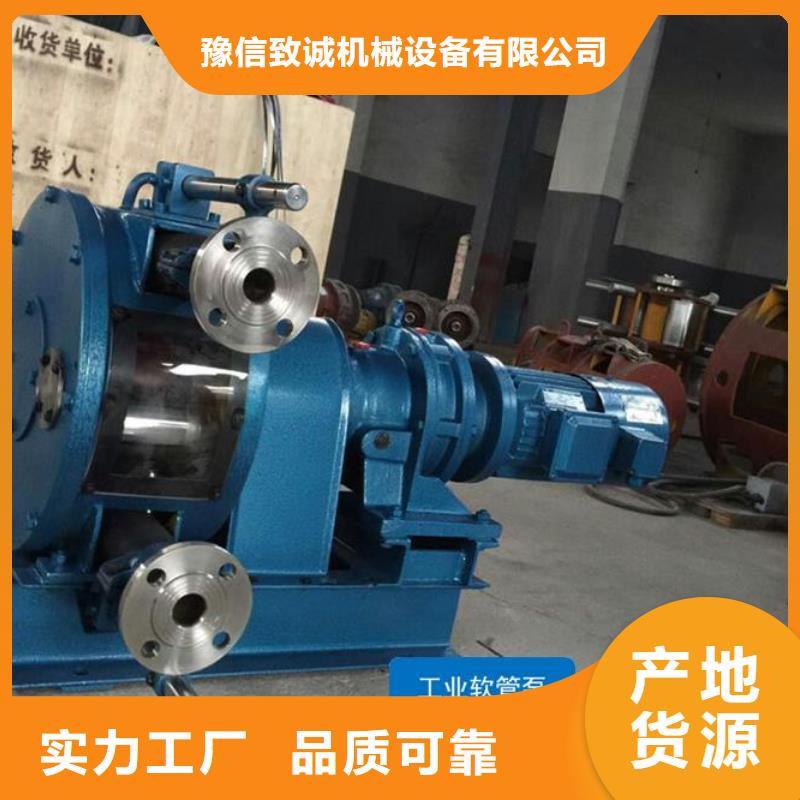

工業軟管泵系列產品是吸收了國外先進技術而開發的一種新型的、多功能、多用途工業軟管泵。我廠研發的高性能軟管泵徹底擺脫了傳統泵葉輪和軸密封的運行模式，對粘度大、腐蝕性大、流體雜質大的介質輸送具有極大的優勢，和傳統蠕動泵輸送泵有著截然不同的原理，應用范圍廣泛。

Industrial hose pump series is a new type, multifunctional and multi-purpose industrial hose pump developed by absorbing foreign advanced technology. The high-performance hose pump developed by our factory has completely rid of the traditional pump impeller and shaft seal operation mode, and has great advantages for medium transportation with high viscosity, corrosiveness and large fluid impurities. Different principles have a wide range of applications.
